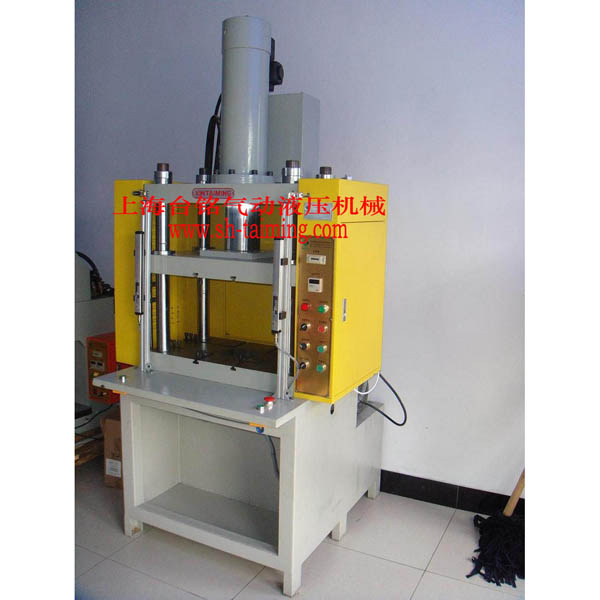

1．Adopts four-column and three-plate structure, high parallel precision of the active plate and working surface, four precise guide sleeves can assure high vertical accuracy;
2．Safe design, operation with both hands, with emergency buttons (the photoelectric protective device should be additionally mounted) and micro-inching adjusting buttons;
3．Working platform is equipped with charging conduit and blowing device to promote productivity;
4．The pressure, stroke, speed, dwell time and shut height can be adjusted according to request, allowing for convenient operation;
5．Under the working platform is installed with the caster and foot cup, allowing the press to move conveniently and be operated in a laborsaving and high-efficient way.
Application:
Die cutting and shaping of burrs of various aluminium alloy die casting products, whole cutting of plastic products; forming of plastic materials, like blanking, stretching and embossing of plates, as well as pressing of plastic and powder products; and other uses; It is mostly used in auto and motorcycle fitting sectors.
Output 30T 40T 50T
Working surface size 500*400 600*500 600*500
Maximum working height 450 500 500
Oil cylinder stroke 300 300 300
Descent velocity of oil cylinder 180 150 150
Compression speed of oil cylinder 20 15 15
Rising velocity of oil cylinder 130 120 120
Features:
1．Adopts four-column and three-plate structure, the active plate paralleling with the working surface in high precision, four precise guide sleeves leading to highly precise down-pressing plumb;
2．Safe design, double hands operation, with emergency buttons (the photoelectric protective device should be additionally mounted) and micro-inching adjusting buttons;
3．On the working platform is set with the charging conduit and blowing device to promote productivity;
4．The pressure, stroke, speed, dwell time and shut height can be adjusted according to request, allowing for convenient operation;
5．Under the working platform is installed with the caster and foot cup, allowing the press to move conveniently and be operated in a laborsaving and high-efficient way.
Scope of Application:
Die cutting and shaping of burrs of various aluminium alloy die casting products, whole cutting of plastic products; forming of plastic materials, like blanking, stretching and embossing of plates, as well as pressing of plastic and powder products; and other uses; It is mostly used in auto and motorcycle fitting sectors.
